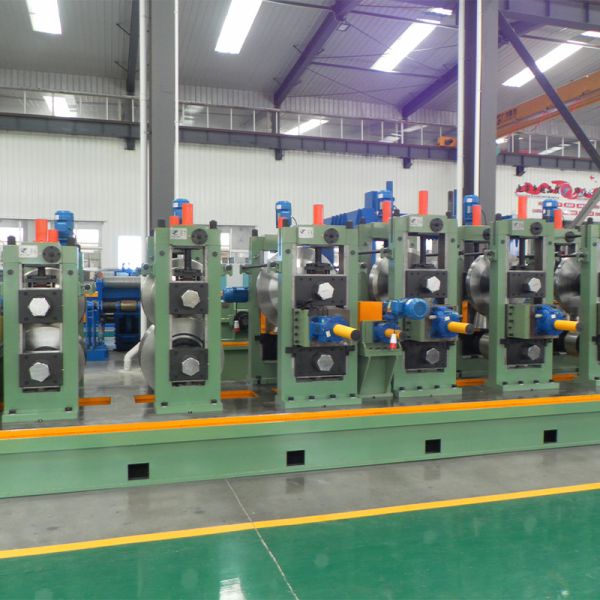

ERW Carbon Steel Pipe Mill 21-63mm 100m/min
Product Specifications
| Attribute | Value |
| Material | Carbon steel, stainless steel, low alloy steel |
| Pipe Diameter | 21 - 63mm |
| Product Speed | Max 100m/min |
| Max. Thickness for Square Pipe | 0.8-3.0mm |
| Certification | CE ISO |
| Roller | Cr12/SKD11 |
Product Description
This ERW pipe making machine levels the fixed strip after the slitting line and feeds it into the forming machine. The strip is bent into pipe shape by rollers, with the edges melted through high frequency current and welded together by squeeze rolls. Also known as high frequency pipe mill.
ERW Pipe Making Machine Technical Process
- Loading coil
- Uncoiler
- Leveling
- Shearing and butt welding
- Accumulator
- Forming
- HF welding
- Intermediate annealing
- Air cooling
- Water cooling
- Sizing
- Cutting
- End facing and chamfering
- Hydraulic testing
- UT testing
- Marking
- Storing
ERW Tube Mill Models
| Model | Diameter Range | Pipe Thickness | Line Speed (m/min) |
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
